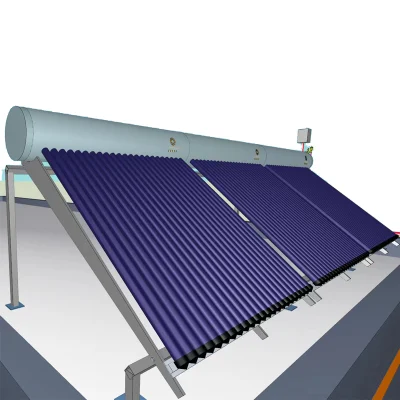

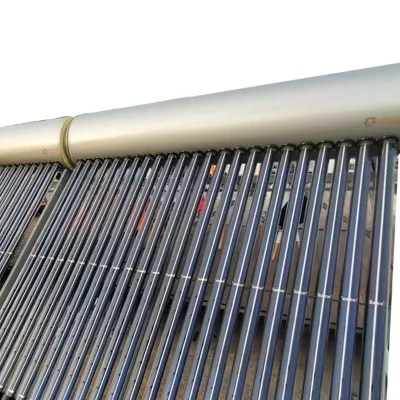

Vacuum Tube with Copper Heat Pipe Solar Water Heater System
Sola Solar Pump free solar water heater is Open water tank for heat storage, closed coil for heat exchange and water intake. Sola Solar 20 second rapid heat exchange technology is adopted. The hot water is ready to use, and the water quality is fresh. The hot water pressure comes from the municipal cold water pressure, which matches with the cold water. It is simple to adjust the water temperature. The pressure is surging, the water volume is sufficient, and the use experience is good.
| Product name | Heat pipe Solar Water Heater |
| Model | PFSLR-240/23-7022-P |
| Types of solar water heaters | Pressurized |
| Collector tube | All glass vacuum heat pipe |
| Absorber surface | interference coating |
| Core runner | Copper pipe |
| Collector Specifications | Φ70*2205mm |
| Number of collectors | 23 pieces |
| Frame material | 6063-T5 aluminum alloy |
| Inner tank material | 0.4mm SUS304 stainless steel |
| Inner tank diameter | Φ380mm |
| Outer tank material | 0.4mm Colored galvanized steel |
| Outer tank size | Φ480mm (round type) |
| Insulation material | 50mm flame retardant polyurethane foam |
| Heat exchanger Material | 316L stainless steel |
| Cold/hot water port connection | DN25 |
| Product Weight | 115 kg |
| Requirements for roof loads | 100-120 kg/m² |
| Aperture area | 3.6 m² |
| Water tank capacity | 240L |
| Weight full | 415kg |
| Product Size | Length (mm) 2300 |
| Width (mm) 2130 | |
| collector inclination | 5°~30° |
| Min. outdoor temperature | -40' ºC |
| Electric heating (option) | 1 pc, 220V50Hz/110v60hz, 1500W |
1. Beijing Nantong Medical
| In 2018, Beijing Haidian, for 3000 people. | |
| Pump free solar collector:96 Sets (403.2 m² in total) | Storage capacity:60ºC hot water 30000 liters in total. |
| Auxiliary heat source: 4 sets gas boiler | Energy saving:331772 kWh per day. |
2. Beijing University of Posts and Telecommunications
| In 2015, Beijing Changping project for 800 students | |
| Pump free solar collector:1057 Sets (44394 m² in total) | Storage capacity:60ºC hot water 32000 liters in total, |
| Auxiliary heat source: 8 sets gas boiler | Energy saving: 476575 kWh per day. |
3. Beijing Daxing Airport South Airlines dormitory
| In 2019, Beijing Daxing, for 1200 people. | |
| Pump free solar collector:600 Sets (2520 m² in total) | Storage capacity:60ºC hot water 45000 liters in total. |
| Auxiliary heat source: 32 sets gas boiler | Energy saving:270520 kWh per day. |
4. Ivorian Elite school
| In 2019, Cote d'Ivoire Country, for 1000 students | |
| Pump free solar collector:101 Sets (404 m² in total) | Storage capacity:60ºC hot water 24240 liters in total. |
| Auxiliary heat source: 15 sets Positive displacement electric heater | Energy saving: 45086 kWh per day. |
5. Nanjing Yuanbo Garden Marriott Hotel
| In 2021, Nanjing city, for 8000 people. | |
| Pump free solar collector:115 Sets (460 m² in total) | Storage capacity:60ºC hot water 27600 liters in total. |
| Auxiliary heat source: government heat exchange station. | Energy saving: 51802 kWh per day. |
6. Yandong Microelectronics Technology Co., Ltd
| In 2021, Beijing city, for 8000 people. | |
| Pump free solar collector:115 Sets (460 m² in total) | Storage capacity:60ºC hot water 27600 liters in total. |
| Auxiliary heat source: government heat exchange station. | Energy saving: 51802 kWh per day. |
7. Beijing Central Academy of Drama
| In 2014, Beijing Changping project for 1200 people | |
| Pump free solar collector:150 Sets (630 m² in total) | Storage capacity:60ºC hot water 45000 liters in total |
| Auxiliary heat source: 6 sets electric water heater | Energy saving: 45087 kWh per day. |
1. What can you buy from us?
Solar Water Heater, Solar water system. Solar collector.
2. What is your Delivery Time?
LCL order/Sample order: 3-7 days.
Full container order:10-15 days.
3. What is your warranty?
3 years after delivery;
4. Can you accept OEM?
YES. will do OEM Based on your requirements.
5. What is your MOQ?
1 set.
6. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese.
