Basic Info.
Model NO.
RT-75NC
Power
Hydraulic
Function
Bending Metals
Radius
R≥1.5D
Angle
0-190
Precision
+/-0.15
Business Type
Manufacturer
Speed
25°/Sec
Condition
New
Certification
ISO 9001:2000, CE
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Transport Package
Wooden Box
Specification
CE ISO
Trademark
RUNTAI
Origin
Zhangjiagang Jiangsu China(Mainland)
HS Code
8462219000
Production Capacity
5000PCS/Year
Product Description

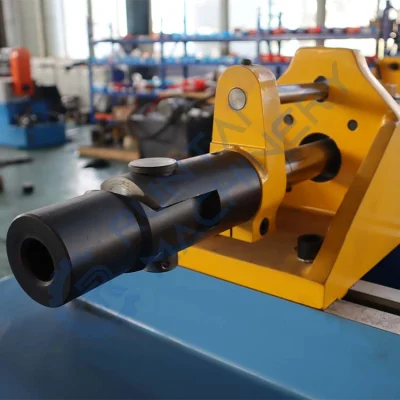

semi-automatic bender RT-75NC
Machine function: pipe/tube bending machine, pipe/tube bender
Bendable material: pipe, tube, tubing, flat bar, profile
Bendable metals: steel, stainless steel, carbon steel, middle steel, aluminum, copper, brass
Shape: round pipe/tube, square tube/pipe, rectangular pipe/tube, elliptical/oval pipe/tube etc
Pipe/tube diameter: 1/4"-6"mm (RT-38A, 50A, 63A, 75A, 93A, 100A, 114A, 130A, 168A)
Controlling: PLC
Clamping: hydraulic
Feeding: manual
Bending: semi-automatic
Technical parameters
| Parameters | RT-75NC |
| Max bending capability | φ75×3.5mm |
| Bending radius | 50~300mm |
| Min bending radius | R≥1.5D |
| Bending angle | 0~190° |
| Valid mandrel bar | 0~3300mm |
| Bending speed | 25°/sec |
| Bending accuracy | ±0.15° |
| Main motor power | 7.5Kw |
| System hydraulic pressure | 14MPa |
| Size | 4300×1350×1300mm |
| Weight | About 2230kg |
Main Features
The NC series tube benders (Pipe Bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
1. Reasonable design and simple style, provides the best space for bending
2. Numerical control, convenient operation make the settings flexible
3. Using the encoder ensures the bending angle accurate and stable
4. Multiple processing models stored for different processing programs switched flexibly.
5. Automatically counting and power failure memory function.
6. Hydraulic cooling system ensures the equipment long-time work stably under the high temperature
7. The main shaft is specially heat treated.
8. All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.
9. The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.
10. Suitable for various materials su ch as steel, stainless, aluminum and copper
RT-75NC
Features:

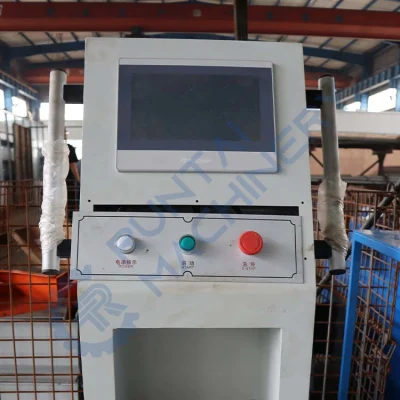

1. Imported PLC control system with program setting and exchange function.
2. With manual, semi-automatic, and automatic operate function
3. With data storage, data counting function.
4. Movable pedal switch with the function of automatic start, emergency stop, high safety operation.
5. With air cooling system, water cooling system for users to choose.
Applications:
1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.
......
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Ningbo, FOB Shanghai, CIF your port
Payment Terms: T/T, L/C, Western Union, MoneyGram
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
