Product Description
Rigid Metal Conduit
General

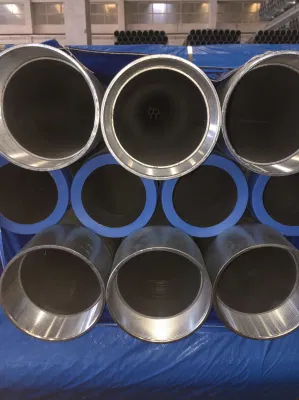

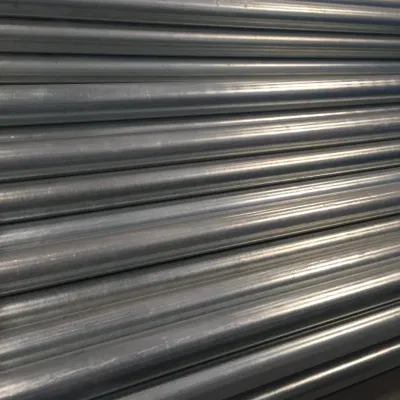

East Conduit Hot Dip Galvanized Electrical Rigid Conduit (UL6) has excellent protection, strength, safety and ductility for your wiring works.
East Conduit Rigid Pipe is manufactured with high-strength steel, and produced by the electric resistance welding process.
East Conduit Rigid Pipe are zinc coated both inside and outside with hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided.
The surface of East Conduit Rigid Pipe adopts the clear post-galvanizing coating to provide further protection against corrosion. The interior surface provides a smooth continuous raceway for easy wire pulling. The ductility characteristics of our conduits helps for easy bending, cutting, and threading in the field.
East Conduit Electrical Rigid Conduit is UL listed, produced in normal trade sizes from 1/2" to 6" in standard lengths of 10feet(3.05m). It is manufactured in accordance with ANSI C80.1, UL6. Both ends threaded according to the standard of ANSI/ASME B1.20.1, coupling supplied on one end, color-coded thread protector on the other end for quick identification of the conduit size.
Detailed Product Description
- Standard: UL6 & ANSI C80.1
- Certificates: UL Listed, certificate No.E308290 (177709-001)
- Trade Size: From 1/2" to 6"
- Both ends:Threaded both ends with one coupling and plastic cap
- Length:3050mm or according to customer's requirement
- Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
- Surface Finished: Hot dip galvanized(HDG).
- Material: Carbon steel coil
- Package: The conduits cover with PVC paper then tied with steel straps
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T
Dimension and Weight Chart
| Trade Size | Nominal Wt. per 100Ft(30.5M) | Nominal Outside Diameter | Nominal Wall Thickness | ||||
| U.S. | Metric | Lbs | Kg | In. | mm | In. | mm |
| 1/2 | 16 | 82 | 37.2 | 0.840 | 21.34 | 0.104 | 2.64 |
| 3/4 | 21 | 109 | 49.4 | 1.050 | 26.67 | 0.107 | 2.72 |
| 1 | 27 | 161 | 73.0 | 1.315 | 33.40 | 0.126 | 3.20 |
| 1-1/4 | 35 | 218 | 98.9 | 1.660 | 42.16 | 0.133 | 3.38 |
| 1-1/2 | 41 | 263 | 119.3 | 1.900 | 48.26 | 0.138 | 3.51 |
| 2 | 53 | 350 | 158.8 | 2.375 | 60.33 | 0.146 | 3.71 |
| 2-1/2 | 63 | 559 | 253.6 | 2.875 | 73.03 | 0.193 | 4.90 |
| 3 | 78 | 727 | 329.8 | 3.500 | 88.90 | 0.205 | 5.21 |
| 3-1/2 | 91 | 880 | 399.2 | 4.000 | 101.60 | 0.215 | 5.46 |
| 4 | 103 | 1030 | 467.2 | 4.500 | 114.30 | 0.225 | 5.72 |
| 5 | 129 | 1400 | 635.0 | 5.563 | 141.30 | 0.245 | 6.22 |
| 6 | 155 | 1840 | 834.6 | 6.625 | 168.28 | 0.266 | 6.76 |
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼" (±6 mm).
Outside Diameter: ½"-1-1/2" ±0.015" (±0.38mm); 2"-6" ±1%.
Weifang East Steel Pipe Co., Ltd is nearly about 60 years old and located in the worldly kite capital -Weifang city in Shandong Province, which is about 156 kilometers far from Qingdao port. It was originated from the socialism cooperative in 1954, then developed into the state-owned enterprise, which was named as Weifang Steel Pipe company in 1976. In 2001, Weifang Steel Pipe company was restructured to be the private enterprise and renamed as Weifang East Steel Pipe Co.,Ltd.
Weifang East Steel Pipe Co.,Ltd, which occupies about 254,000 square meters, has a total capital of USD80 million and annual comprehensive output of 200,000 tons. Now it owns 800 employees, including 300 senior/intermediate engineers and professional technicians.
Now our electrical products include Rigid Steel Conduit ,Rigid Aluminum Conduit, IMC Conduit, EMT Conduit and Conduit fittings such as elbow, nipple, coupling, etc., and our products have been exported to more than 51 countries in the world, including North America, Middle America, South America, Asia, Middle East, Europe, etc. We are always appreciated by our clients for good quality and excellent services.
- Fast Facts About Weifang East Steel Pipe Co.,Ltd.
-The largest rigid steel conduit producer in China
-The only producer of Hot Dip Galvanized EMT conduit in the world.
-The professional manufacturer of conduit accessories in China
Q1. Are you a manufacturer or trading company?
A: We are a manufacturer specializing in steel pipe related products for more than 20 years in domestic market, so we can provide products stably for a long time with lower price.
Q2.Can you provide free sample for our test?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. You only need to bear the freight and the sample will be sent out within 7 days.
Q3. Do you have any MOQ limit for production?
A: The order quantity minimum requirement is a 20 GP container. As for our steel pipe product, we usually use container transport for lower freight.
Q4. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly buyer confirms the samples(if you need) and places deposit for formal order.
Finally we arrange the production.
Q5. Is it OK to print my logo on the product or the carton packing?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How to deal with the faulty?
A: We sincerely welcome you to investigate our factory and inspect the goods. Our products are produced in strict quality control system and the defective rate is low.
Also, if you have any questions or dissatisfaction, please feel free to contact us. We will serve you as soon as possible and give you a satisfactory solution.
