Basic Info.
Model NO.
EZS
Special Use
Wear Resistant Steel, Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel
Grade
Brass, Copper Nickel,Aluminum
Wall Thickness
0.2mm-120mm
Outside Diameter
2mm-914mm
Length
1m,3m,6m or as Customer′s Request
Material
C2600 C2680 C2700 C2800 etc
Shapes
Round ,Square,Rectangular
Certificate
SGS,BV,ISO,TUV,Rosh
Temper
Soft Annealed,Half Hard
Service
Bending,Decoiling,Weldeing,Punching, Cutting
Terms
Fob,CIF,EXW etc
Delivery Time
7-30days
Transport Package
PVC
Specification
customized
Trademark
EZS
Origin
Shanghai, China
HS Code
741121000
Production Capacity
50000ton/Year
Product Description

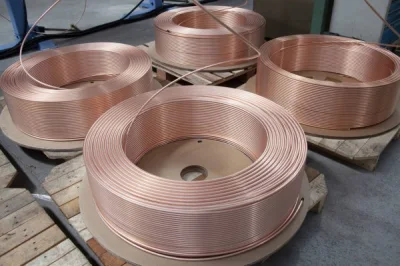

Air Condition Tubing Copper Pancake Coil Tube
| Alloy | Chemical Composition | ||||||
| QB | GB/JIS/UNS | Cu | Pb | Zn | Fe | Sn | Total Impurity |
| C2501 | JIS C3501 | 60.0-64.0 | 0.7-1.7 | REM | <=0.2 | Fe+Sn<=0.4 | - |
| C3601 | JIS C3601 | 59.0-63.0 | 1.8-3.7 | REM | <=0.3 | Fe+Sn<=0.5 | - |
| C3602 | JIS C3602 | 59.0-63.0 | 1.8-3.7 | REM | <=0.5 | Fe+Sn<=1.2 | - |
| C3603 | JIS C3603 | 57.0-61.0 | 1.8-3.7 | REM | <=0.35 | Fe+Sn<=0.6 | - |
| C3604 | JIS C3604 | 57.0-61.0 | 1.8-3.7 | REM | <=0.5 | Fe+Sn<=1.2 | - |
| C3605 | JIS C3605 | 56.0-60.0 | 1.8-3.7 | REM | <=0.5 | Fe+Sn<=1.2 | - |
| C3771 | JIS C3771 | 57.0-61.0 | 1.8-3.7 | REM | Fe+Sn<=1.0 | - | |
| H62 | H62/JIS C2800 | 60.5-63.5 | <=0.08 | REM | <=0.15 | - | <=0.5 |
| H65 | H65/JIS C2680 | 63.5-68.0 | <=0.03 | REM | <=0.1 | - | <=0.3 |
| H68 | H68/JIS C2600 | 67.0-70.0 | <=0.03 | REM | <=0.1 | - | <=0.3 |
| H63 | H63 | 62.0-65.0 | <=0.08 | REM | <=0.15 | - | <=0.5 |
| H90 | H90 | 88.0-91.0 | <=0.03 | REM | <=0.1 | - | <=0.2 |
| H62F | H62F | 60.0-63.0 | 0.5-1.2 | REM | <=0.2 | - | <=0.75 |
| HPb59-1 | HPb59-1 | 57.0-60.0 | 0.8-1.9 | REM | <=0.5 | - | <=1.0 |
| Alloy | Temper | Specification | Tensile strength | Elongation(%) |
| H62 H63 | Y2(1/2h) | 0.05-1.0 | >=410 | - |
| >1.0-6.0 | >=355 | >=7 | ||
| Y(H) | 0.05-1.0 | 685-980 | ||
| >1.0-6.0 | 540-835 | |||
| H65 | Y2(1/2h) | 0.05-1.0 | >=400 | - |
| >1.0-6.0 | >=375 | >=7 | ||
| Y(H) | 0.05-1.0 | 635-885 | - | |
| >1.0-6.0 | 490-785 | - | ||
| H68 | Y2(1/2h) | 0.05-1.0 | >=390 | - |
| >1.0-6.0 | >=345 | >=10 | ||
| Y(H) | 0.05-1.0 | 685-930 | - | |
| >1.0-6.0 | 540-835 | - | ||
| C3501 | 1/2H | 0.5-12 | 345-440 | >=10 |
| H | 0.5-10 | >=420 | - | |
| C3601 | H | 0.5-10 | >=345 | - |
| H | 0.5-10 | >=345 | - | |
| C3602 | F | 0.5-10 | >=365 | - |
| C3603 | 1/2H | 0.5-10 | >=365 | - |
| H | 0.5-10 | >=450 | - | |
| C3604 C3605 | F | 0.5-10 | >=420 | - |
| C3771 | F | 0.5-10 | >=365 | >=10 |
